698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160

  • 1
  • 2

Brand Name : Vinncom

Model Number : VN-HC2x2-0738-OX

Certification : RoHS/ISO9000

Place of Origin : China

Part Number : VN-HC2x2-0738-OX

Impedance ( Ohm ) : 50

Operating Frequency ( MHz ) : 698-3800

VSWR : ≤1.25

Coupling (dB) : 3.0±0.9

Contact Now

698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160

Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.

VN-HC2x2-0738-OX.docx

Part Number VN-HC2x2-0738-OX
Operating Frequency ( MHz ) 698-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±0.9
Insertion Loss (dB) 3.7
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm) -150 / -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female/4.3-10 Female/DIN Female
Handling Power (Watt, max) 500(N:300)
Peak Power (Watt, max) 1500(N:1200)

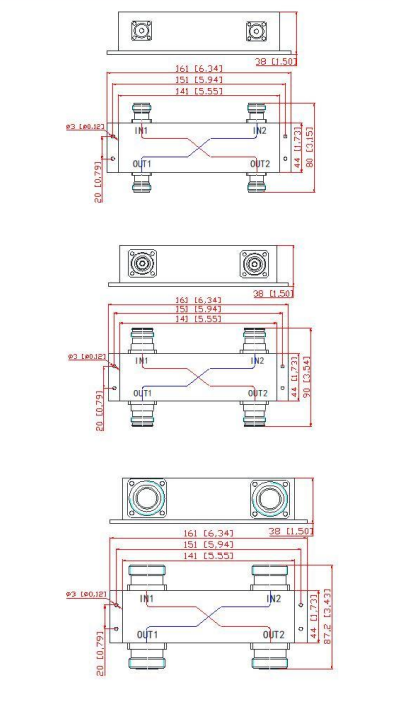

Dimension (mm)(L×W×H, excl connector) 141 × 44 × 38 170 × 100 × 40 170 × 100 × 40
Net Weight (g) 615 ± 20 685 ± 20 880 ± 20
Packing Dimensions (mm,L×W×H) 170 × 100 × 40 170 × 100 × 40 170 × 100 × 40
Packing Carton Size (mm,L×W×H) 460 × 350 × 195 520 × 360 × 110 520 × 360 × 110
ROHS Compliance Yes
Revision R1

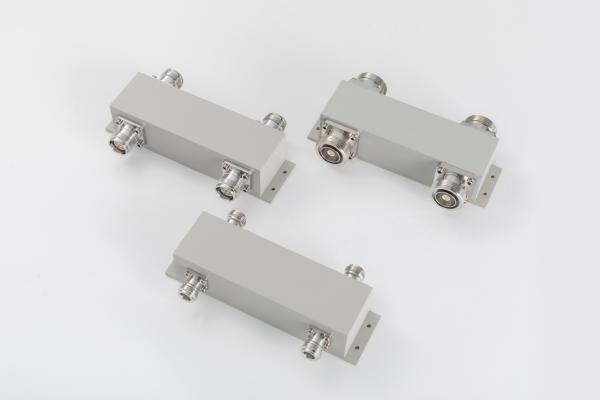

698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160

698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160
