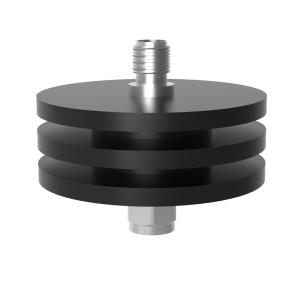

5W 50GHz 2.4mm Male Female SMA Variable RF Attenuator

Product Categories

HeFei Vinncom Science And Technology Co.,LTD

Contact Now

Name: 5W 50GHz 24mm Male Female SMA Variable RF Attenuator
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-AT-50G-5W-2.4mm

Certification : ISO9000 RoHS

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 300pcs per day

Delivery Time : depends on your quantity

Packaging Details : box/carton

Operating Frequency : DC-50 GHZ

VSWR : ≦1.25

Impedance ( Ohm ) : 50

Application : Indoor & Outdoor

Degree of Protection : IP65

Handling Power (Watt, max) : 5W

Contact Now

DC-50GHz 5W 2.4mm Male-2.4mm Female Attenuator

Part Number	VN-AT-50G-5W-2.4mm
Operating Frequency	DC-50 GHZ
VSWR	≦1.25
Impedance ( Ohm )	50
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	5W
Interface	2.4mm Male-2.4mm Female
Operating Temperature ( ℃ )	-55~+125℃
Attenuation(dB)	1~10, 20, 30dB
Attenuation Accuracy	±1.1dB@0~9dB attenuation ±1.5dB@10, 20, 30dB attenuation

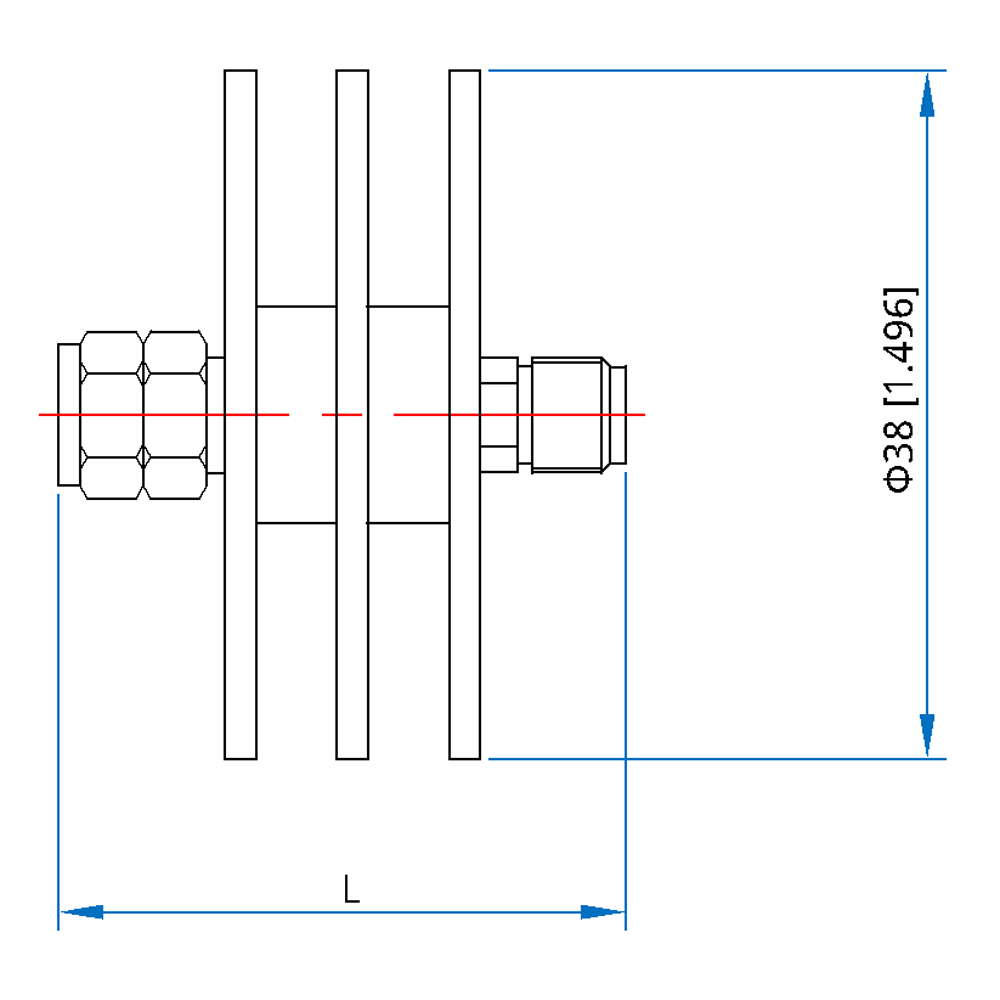

Dimension (mm)(L×W×H, include connector)	Φ3829mm(1~20dB) Φ3831.4(30dB)
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance	Yes

Revision	R1
Date	16-Feb-2021
