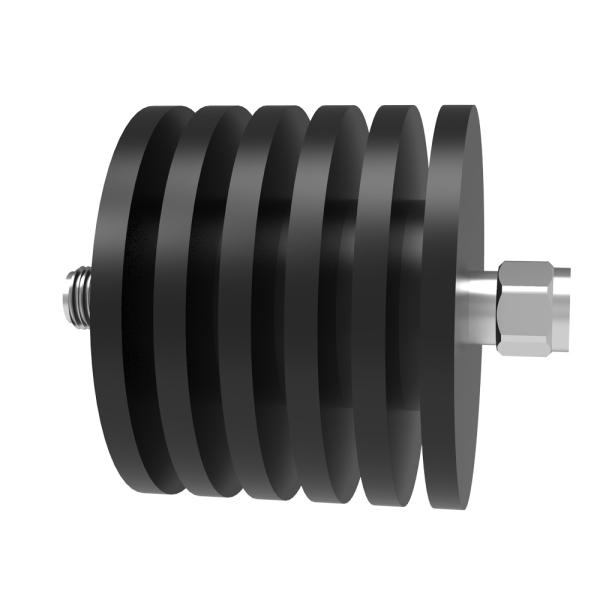

10W 2.92mm 40Ghz 40dB Rf Power Attenuator for Electrical Equipments

Product Categories

HeFei Vinncom Science And Technology Co.,LTD

Contact Now

Name: 10W 292mm 40Ghz 40dB Rf Power Attenuator for Electrical Equipments
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-AT-40G-10W-2.92mm

Certification : ISO9000/RoHS

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T

Supply Ability : 300pcs per day

Delivery Time : depends on your quantity

Packaging Details : box/catron

Operating Frequency : DC-40 GHZ

Impedance ( Ohm ) : 50

Application : Indoor & Outdoor

Degree of Protection : IP65

Handling Power (Watt, max) : 10

Interface : 2.92mm Male - 2.92mm Female

Contact Now

DC-40GHz 10W 2.92mm Male-2.92mm Female xdB Attenuator

Part Number	VN-AT-40G-10W-2.92mm
Operating Frequency	DC-40 GHZ
Impedance ( Ohm )	50
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	10
Interface	2.92mm Male - 2.92mm Female
Operating Temperature ( ℃ )	-55~+85℃
Attenuation(dB)	10	20	30	40	VSWR
DC~26.5	±1.0	±1.0	±1.0	±1.0	1.25
DC~32	-1.0/+1.5	-1.0/+1.2	-1.0/+1.2	-1.0/+1.5	1.35
DC~40	-1.0/+2.0	-1.0/+1.5	-1.0/+1.5	-1.0/+2.0	1.40
Dimension (mm), include connector)	Φ38* 47.6
Net Weight (g)	/
Packing Dimensions (mm,L×W×H)	/
Packing Carton Size (mm,L×W×H)	/
ROHS Compliance	Yes
Revision	R1
Date	16-Feb-2021

Product Tags:

2.92mm rf power attenuator
