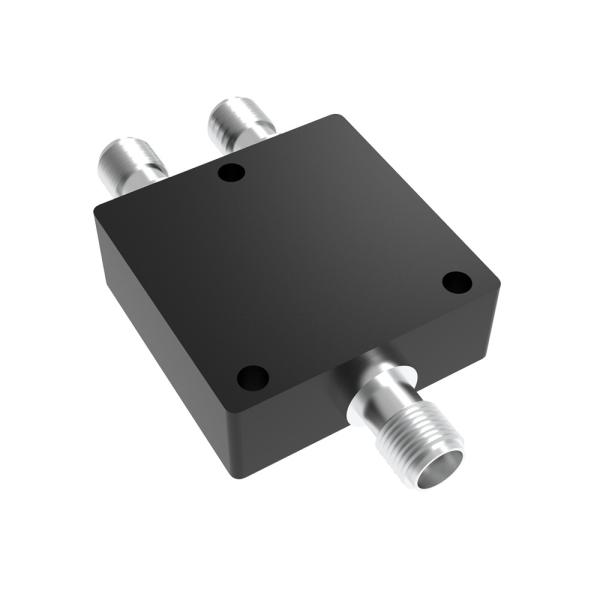

3G 2 Way 50Ohm Resistive Wilkinson Power Divider

Brand Name : Vinncom

Model Number : VN-PD-3G-OX2

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 50pcs per day

Delivery Time : 2-4weeks

Packaging Details : foam+box

Operating Frequency ( GHz ) : DC-3G

Impedance( Ohm ) : 50

VSWR(Input Port) : ≤1.20

VSWR(Output Port) : ≤1.20

Insertion loss : ≤6.8

Average Power (Watt max.) : 2W

Isolation(dB) : ≥5.6

Amplitude Balance(dB) : ±0.3

Contact Now

3G 2 Way 50Ohm Resistive Power Divider SMA Female

Part Number VN-PD-3G-OX2
Operating Frequency ( GHz ) DC-3G

Impedance( Ohm )

50

VSWR(Input Port)

 ≤1.20

VSWR(Output Port)

≤1.20
Insertion loss ≤6.8
Average Power (Watt max.) 2W

Isolation(dB)

≥5.6

Amplitude Balance(dB)

±0.3

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 SMA Female

Dimension Tolerance(mm)

 ±0.5

Mounting

 3-Φ2.7mm through-hole (SMA)
3G 2 Way 50Ohm Resistive Wilkinson Power Divider3G 2 Way 50Ohm Resistive Wilkinson Power Divider
