Brand Name : Vinncom
Model Number : VN-PD-500-6000-OS2
Certification : RoHS/ISO9000
Place of Origin : China
MOQ : 5pcs
Price : negotiation
Payment Terms : T/T, Western Union
Supply Ability : 50pcs per day
Delivery Time : 2-4weeks
Packaging Details : foam+box
Operating Frequency ( MHz ) : 500-6000
Impedance( Ohm ) : 50
Input VSWR : ≤1.25
Output VSWR : ≤1.20
Insertion loss : ≤1.2
Average Power (Watt max.) : 30W max. / 2W max. as combiner
30W max. / 2W max. as combiner : ≥20
Amplitude Balance(dB) : ±0.2
Phase Balance : ±3°
Interface : SMA Female
500-6000MHz Wilkinson SMA Female 2 Way Power Divider/Combiner For IBS And DAS
Part Number | VN-PD-500-6000-OX2 |
Operating Frequency ( MHz ) | 500-6000 |
Impedance( Ohm )
| 50
|
Input VSWR | ≤1.25 |
Output VSWR | ≤1.20 |
Insertion loss | ≤1.2 |
Average Power (Watt max.) | 30W max. / 2W max. as combiner |
Isolation(dB)
| ≥20
|
Amplitude Balance(dB)
| ±0.2
|
Phase Balance | ±3° |
Operating Temperature( ℃ )
| -35 ~ + 75c
|
Interface
| SMA Female |
Size | 157*26*10mm |
Dimension Tolerance(mm)
| ±0.5 |
Mounting
| 4-Φ2.8mm through-hole (SMA) |
![]() |

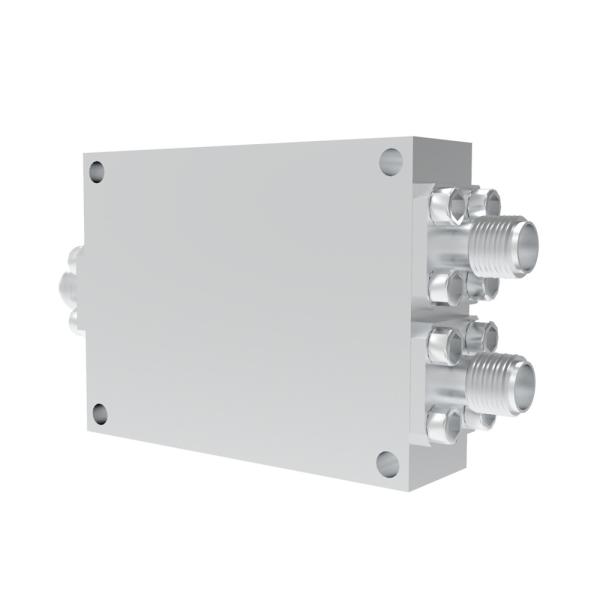

SMA Female 500-6000MHz 2 Way Power Divider For IBS And DAS Images |
