LAB TESTING 4GHz DIN Female RF Dummy Load

200 Watts 3.8GHz 4GHz DIN Female RF Dummy Load Termination

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .

VN-LD-4G-200W-ODf.pdf

DIN Female RF Dummy Load

4GHz RF Dummy Load

LAB TESTING rf termination load

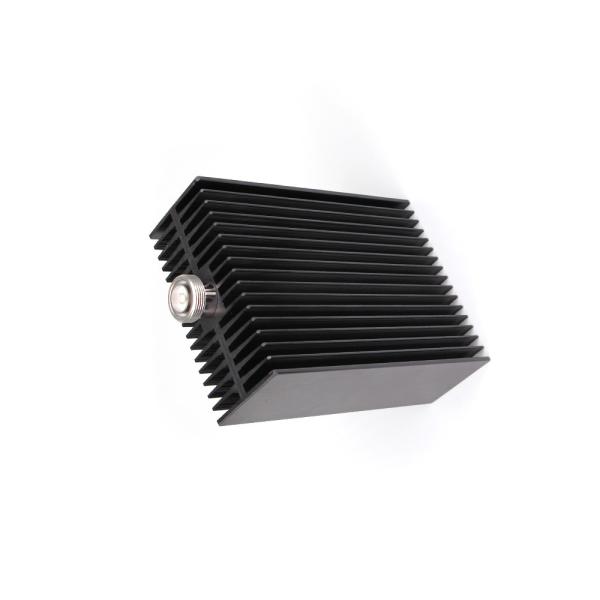

LAB TESTING 4GHz DIN Female RF Dummy Load Images
